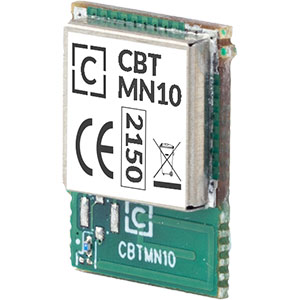

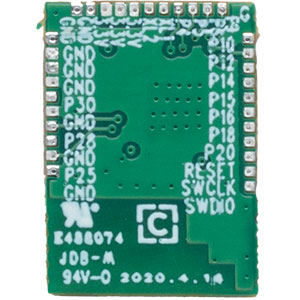

CBTMN10 is a multiprotocol module that supports Bluetooth 5.3 stack for BLE (Bluetooth Low Energy) and is designed for high data rate, short-range wireless communication in the 2.4GHz ISM band. CBTMN10 is a low power and ultra-low cost solution for wireless transmission applications.

Want to order in bulk? Request a Quote
Bluetooth : 5.3 low energy modules
SOC : nRF52810
Line of Sight : 80m
CPU : ARM Cortex-M4, 64MHz
Crystals : 2 x 32.768kHz crystals
Memory : 24KB RAM, 192KB Flash
Antenna : PCB antennas, variants with chip
antennas, U.FL connectors available upon request
Certifications : CE RED, WPC, FCC (applied)

PCB Design

Software Development Kit

Evaluation Kit

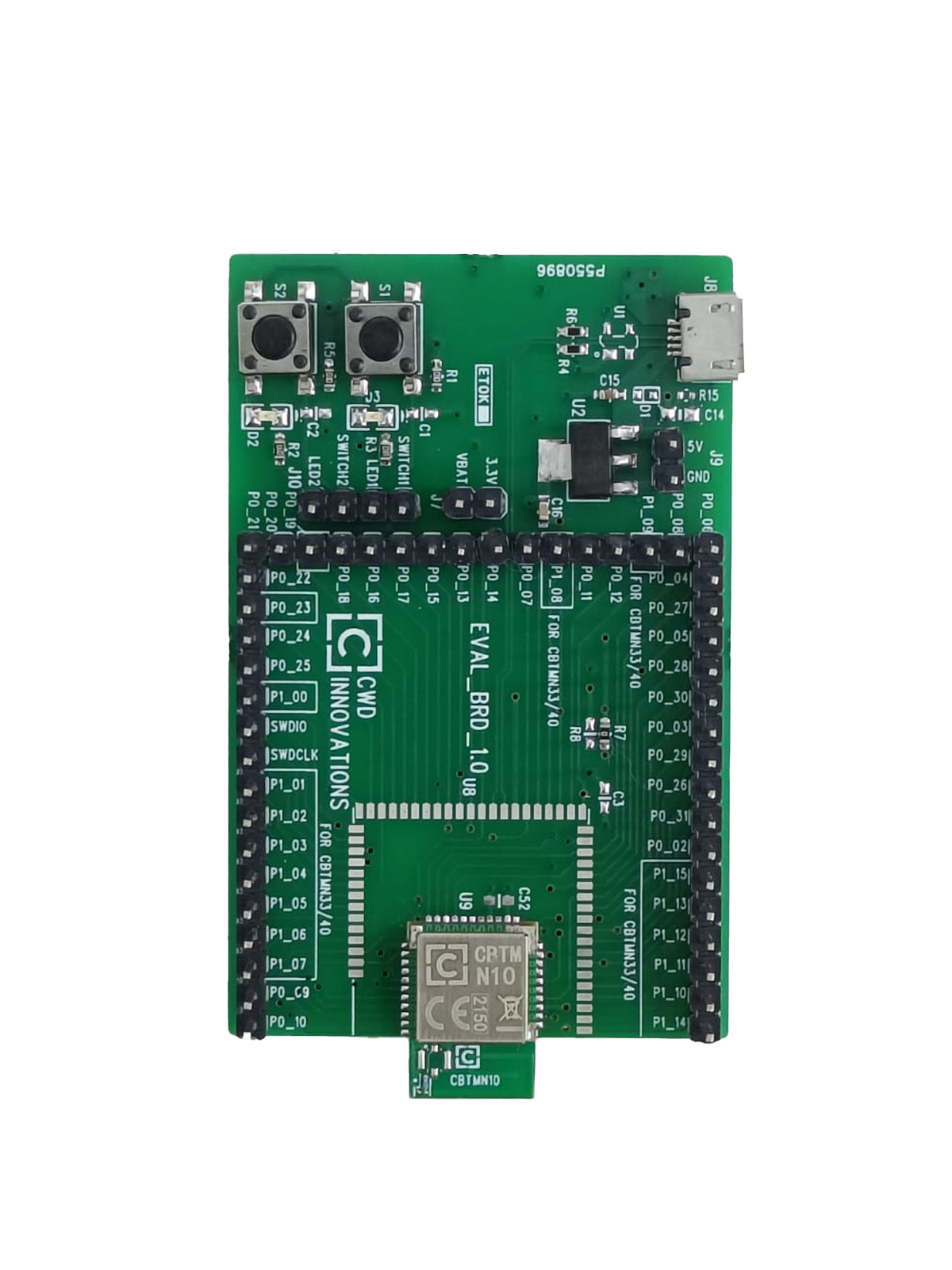

The evaluation board, CBTMN-EVK10 is designed for the CBTMN10 module. The board is based on Nordic Semiconductor’s nRF52 chip.
