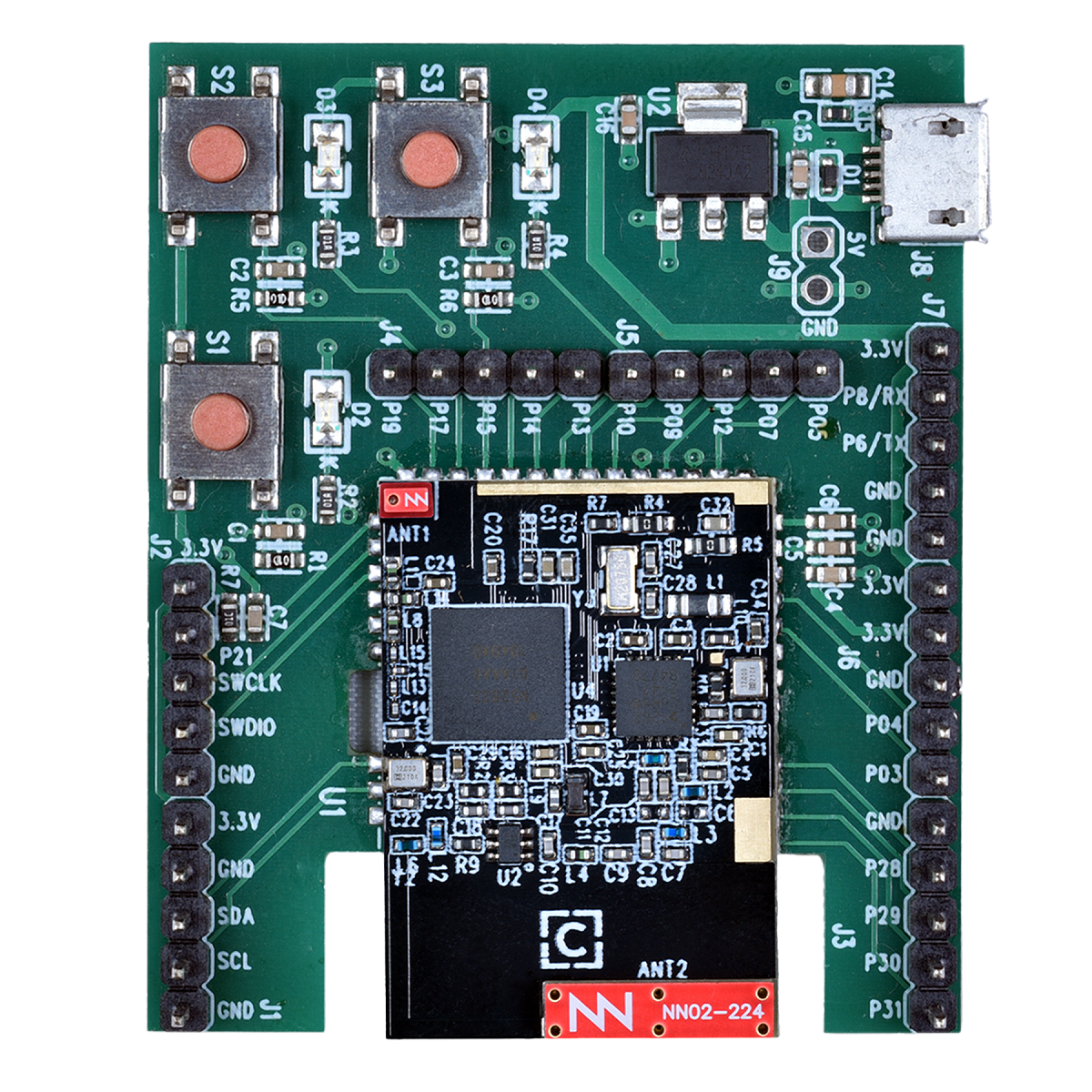

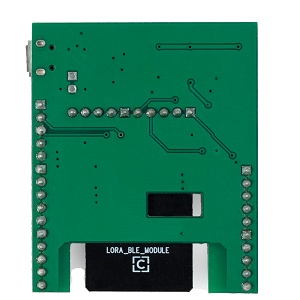

This Evaluation Board is designed for the dual-combo module, CBTLRM01, that supports Bluetooth® Low Energy and LoRaWAN® using Nordic's nRF52 and Semtech's SX1262 SoC.

  • Supports all the features of CBTLRM01
  • Delivers high data rates for long-range wireless communication in the 2.4 GHz ISM band for BLE and 150MHz to 960MHz bands for LoRa®
  • Can operate in SIGMESH protocol, ANT protocol and LoRaWAN® standard for proprietary protocols
5V input supply
Micro-USB Jack / J9 pins
UART available on board
I2C available on board
3 switches available on board
3 LEDs available on board
20 GPIOs available at test point on board
